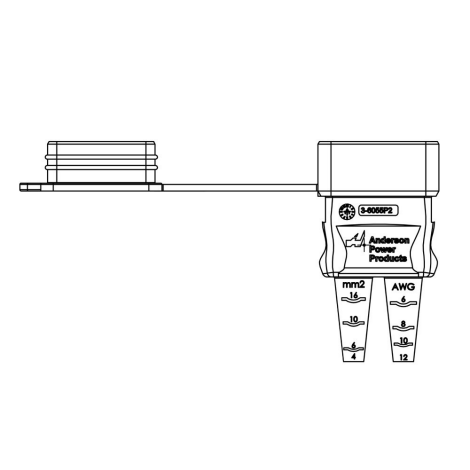

SB®175 Boot with Cover- Source

数量

Product Description

  • The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors.
  • The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used.
  • SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
    SKU
    3-6036P1-BK
    SB® Environmental Boots provide water, dirt, chemical and UV protection for SB®175 connectors. The durable boots shield the connectors from water and dirt to IP64 in both the mated and unmated condition. Also found in: /SB 175/SB Boots
    100
    添加您的评论 率先查看此产品
    • The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors.
    • The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used.
    • SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.

      客户评价

        您正在审查 SB®175 Boot with Cover- Source

        必填字段后有 *.

        您的评分
        价格
        价值
        质量

        Specifications

        ELECTRICAL
        Current Rating AmperesUL 1977CSA
          • SB®5012050
          • SB®120240130
          • SB®175280175

        MECHANICAL
        Environmental Protection
          • SB®50, SB®120 and SB®175IP64

        Wire Size RangeAWGmm²
          • SB®5016 to 61.3 to 13.3
          • SB®12010 to 15.3 to 42.4
          • SB®17512 to 1/03.3 to 53.5

        Operating TemperatureFC
          • SB® Connector Housing-4° to 221°20° to 105°
          • SB® Connector Housing (CR)*-40° to 221°-40° to 105°
          • SB® Environmental Boot-40° to 275°-40° to 135°

        Mating CyclesConnector in Boot
          • SB®501,500
          • SB®1201,500
          • SB®1751,500

        MATERIALS - SB®50, SB®120 and SB®175
        • SB® Connector HousingPC
          • SB® Connector Housing (CR) *PC/PBT
          • SB® Environmental BootTPE

        Flammability Rating
