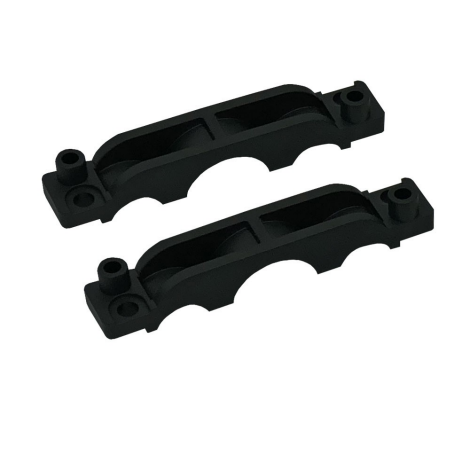

SBS®X-75A CABLE CLAMP

数量

Product Description

  •
  • SBS®X-75A Sealed Waterproof Connector Series comes with two power contacts rated up to 135A,  along with up to 4 auxiliaries.
  •
  • Connector accepts power wire sizes from 12 to 4 AWG (2.5 to 25mm2) and wire sizes 24 to 14 AWG (0.50 to 1.5 mm2) for auxiliaries
  •
  • Operating temperature -20°C to 105°C (-4°F to 221°F)
  •
  • Handles up to 5,000 mating cycles
  •
  • Product is rated for IP 68 ingress protection certification thru the use of O-Rings and Grommets in the mated condition, or with the use of covers in the unmated condition
  •
  • Positive metal latches help safeguard against accidental disconnects that may be caused by vibration
  •
  • Built in cable clamp allows for strain relief on wires
SKU
2-8841P1
SBS®X-75A CABLE CLAMP
100
添加您的评论 率先查看此产品
  •
  • SBS®X-75A Sealed Waterproof Connector Series comes with two power contacts rated up to 135A,  along with up to 4 auxiliaries.
  •
  • Connector accepts power wire sizes from 12 to 4 AWG (2.5 to 25mm2) and wire sizes 24 to 14 AWG (0.50 to 1.5 mm2) for auxiliaries
  •
  • Operating temperature -20°C to 105°C (-4°F to 221°F)
  •
  • Handles up to 5,000 mating cycles
  •
  • Product is rated for IP 68 ingress protection certification thru the use of O-Rings and Grommets in the mated condition, or with the use of covers in the unmated condition
  •
  • Positive metal latches help safeguard against accidental disconnects that may be caused by vibration
  •
  • Built in cable clamp allows for strain relief on wires
