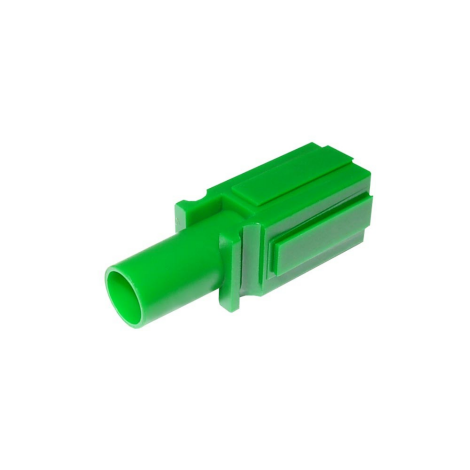

Powerpole®10 Green Ground Socket Housing

Quantity

Product Description

  • Powerpole® connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance. The housings are modular. They provide 600 Volts continuous, AC or DC operation. Wire sizes range from #14 to #16 AWG (2.1 to 1.3 mm²). Contacts are available in reeled and loose piece designs to support all production needs from engineering prototype, low volume and high volumes products.
  • Make-first/Break-last connection Provides safety and system integrity
  • Green housing Visual indication of ground terminal
  • Molded-in dovetails Can be assembled with standard Powerpole® PP15, Powerpole® PP30 and Powerpole® PP45 connectors to make pre-grounded multipole configurations
SKU
1204G1
Powerpole®10 Green Ground Socket Housing PP10 Pin and Socket
  • Powerpole® connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance. The housings are modular. They provide 600 Volts continuous, AC or DC operation. Wire sizes range from #14 to #16 AWG (2.1 to 1.3 mm²). Contacts are available in reeled and loose piece designs to support all production needs from engineering prototype, low volume and high volumes products.
  • Make-first/Break-last connection Provides safety and system integrity
  • Green housing Visual indication of ground terminal
  • Molded-in dovetails Can be assembled with standard Powerpole® PP15, Powerpole® PP30 and Powerpole® PP45 connectors to make pre-grounded multipole configurations

Customer Reviews

    You're reviewing Powerpole®10 Green Ground Socket Housing

    Required fields are followed by *.

    Your Rating
    Price
    Value
    Quality

    Specifications

    Powerpole PP10 Pin & Socket Specifications

    ELECTRICAL
    UL Current Rating (Amperes)*10*

    UL Voltage Ratings (Volts)**600*

    AVG Contact Resistance*2,200
    (micro-ohms)

    Insulation Withstanding2,200
    Test Voltage (Volts AC/DC)

    MECHANICAL
    Contact Barrel Wire Size (AWG)#14 to #16
                                       (mm²)2.1 to 1.3

    Maximum Wire Insulation Diameter (inches)0.137
                                                     (mm)3.48

    Operating Temperature Range °C***-20° to 105°
                                               °F-4° to 221°

    Contact Retention Force (lbf)25

    No load (Contact/Disconnect Cycles)To 250

    Avg. Connection/Disconnect (lbf)5

    MATERIALS
    Flammability Rating of Housing MaterialUL94 V-0


    * UL Rated for 65°C largest wire or cable size
    ** Both AC & DC Voltage
    *** Contact factory for higher temperature rated connectors

    Powerpole PP30 Pin & Socket Specifications

    ELECTRICAL
    UL Current Rating (Amperes)*30****

    UL Voltage Ratings (Volts)**600*

    AVG Contact Resistance*600
    (micro-ohms)

    Insulation Withstanding2,200
    Test Voltage (Volts AC/DC)

    MECHANICAL
    Contact Barrel Wire Size (AWG)#10
                                        (mm²)5.3

    Maximum Wire Insulation Diameter (inches)0.175
                                                     (mm)4.45

    Operating Temperature Range °C***-20° to 105°
                                               °F-4° to 221°

    Contact Retention Force (lbf)25

    No load (Contact/Disconnect Cycles)To 250

    Avg. Connection/Disconnect (lbf)3

    MATERIALS
    Flammability Rating of Housing MaterialUL94 V-0



    * UL Rated for 65°C largest wire or cable size
    ** Both AC & DC Voltage
    *** Contact factory for higher temperature rated connectors
    **** Based on 10 AWG
