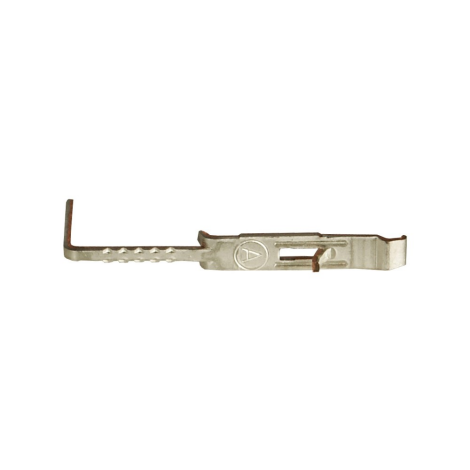

Powerpole® 15-45 25A Right Angle PCB Contacts Tin Plated 25.07mm, Bottom Row, High Detent
Powerpole® 15-45 25A Right Angle PCB Contacts Tin Plated 25.07mm, Bottom Row, High Detent
下载原图（高清） 下载图像（低分辨率） 在新选项卡中打开图像

Powerpole® 15-45 25A Right Angle PCB Contacts Tin Plated 25.07mm, Bottom Row, High Detent

数量

Product Description

  • Suitable for right angle applications up to 25A per pole. Tin plating enhances solderability. Cannot be mixed with 45A PCB contacts. For mating with wire contacts only.
SKU
1317G12-BK
25 AMP RIGHT ANGLE BOTTOM ROW HIGH DETENT PCB CONTACT 25.70MM LENGTH
100
添加您的评论 率先查看此产品
  • Suitable for right angle applications up to 25A per pole. Tin plating enhances solderability. Cannot be mixed with 45A PCB contacts. For mating with wire contacts only.

客户评价

    您正在审查 Powerpole® 15-45 25A Right Angle PCB Contacts Tin Plated 25.07mm, Bottom Row, High Detent

    必填字段后有 *.

    您的评分
    价格
    价值
    质量

    Specifications

    Powerpole PP10 Pin & Socket Specifications

    ELECTRICAL
    UL Current Rating (Amperes)*10*

    UL Voltage Ratings (Volts)**600*

    AVG Contact Resistance*2,200
    (micro-ohms)

    Insulation Withstanding2,200
    Test Voltage (Volts AC/DC)

    MECHANICAL
    Contact Barrel Wire Size (AWG)#14 to #16
                                       (mm²)2.1 to 1.3

    Maximum Wire Insulation Diameter (inches)0.137
                                                     (mm)3.48

    Operating Temperature Range °C***-20° to 105°
                                               °F-4° to 221°

    Contact Retention Force (lbf)25

    No load (Contact/Disconnect Cycles)To 250

    Avg. Connection/Disconnect (lbf)5

    MATERIALS
    Flammability Rating of Housing MaterialUL94 V-0


    * UL Rated for 65°C largest wire or cable size
    ** Both AC & DC Voltage
    *** Contact factory for higher temperature rated connectors

    Powerpole PP30 Pin & Socket Specifications

    ELECTRICAL
    UL Current Rating (Amperes)*30****

    UL Voltage Ratings (Volts)**600*

    AVG Contact Resistance*600
    (micro-ohms)

    Insulation Withstanding2,200
    Test Voltage (Volts AC/DC)
