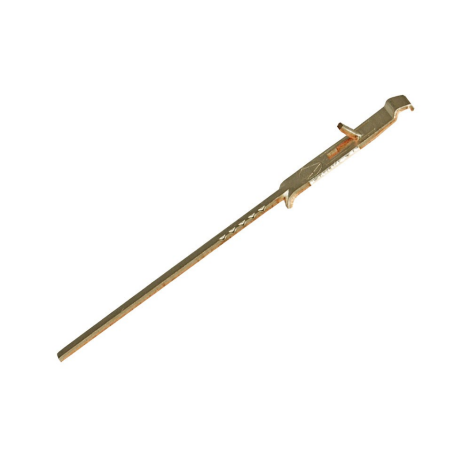

Powerpole® 15-45 25A Vertical PCB Contacts Tin Plated Low Mating Force 44.7mm, Low Detent
Powerpole® 15-45 25A Vertical PCB Contacts Tin Plated Low Mating Force 44.7mm, Low Detent
下载原图（高清） 下载图像（低分辨率） 在新选项卡中打开图像

Powerpole®15-45 25A垂直印刷电路板端子镀锡低接合力44.7mm，低制动

数量

Product Description

仅用于与线缆端子配合。镀锡适合垂直应用，每位最大电流为25A，可提高可焊性。
SKU
1377G4
25 AMP垂直低位印刷电路板端子长度44.70MM
100
添加您的评论 率先查看此产品
仅用于与线缆端子配合。镀锡适合垂直应用，每位最大电流为25A，可提高可焊性。

客户评价

    您正在审查 Powerpole®15-45 25A垂直印刷电路板端子镀锡低接合力44.7mm，低制动

    必填字段后有 *.

    您的评分
    价格
    价值
    质量

    Specifications

    Powerpole PP10 Pin & Socket Specifications

    ELECTRICAL
    UL Current Rating (Amperes)*10*

    UL Voltage Ratings (Volts)**600*

    AVG Contact Resistance*2,200
    (micro-ohms)

    Insulation Withstanding2,200
    Test Voltage (Volts AC/DC)

    MECHANICAL
    Contact Barrel Wire Size (AWG)#14 to #16
                                       (mm²)2.1 to 1.3

    Maximum Wire Insulation Diameter (inches)0.137
                                                     (mm)3.48

    Operating Temperature Range °C***-20° to 105°
                                               °F-4° to 221°

    Contact Retention Force (lbf)25

    No load (Contact/Disconnect Cycles)To 250

    Avg. Connection/Disconnect (lbf)5

    MATERIALS
    Flammability Rating of Housing MaterialUL94 V-0


    * UL Rated for 65°C largest wire or cable size
    ** Both AC & DC Voltage
    *** Contact factory for higher temperature rated connectors

    Powerpole PP30 Pin & Socket Specifications

    ELECTRICAL
    UL Current Rating (Amperes)*30****

    UL Voltage Ratings (Volts)**600*

    AVG Contact Resistance*600
    (micro-ohms)

    Insulation Withstanding2,200
    Test Voltage (Volts AC/DC)

    MECHANICAL
    Contact Barrel Wire Size (AWG)#10
                                        (mm²)5.3

    Maximum Wire Insulation Diameter (inches)0.175
                                                     (mm)4.45

    Operating Temperature Range °C***-20° to 105°
                                               °F-4° to 221°

    Contact Retention Force (lbf)25

    No load (Contact/Disconnect Cycles)To 250

    Avg. Connection/Disconnect (lbf)3

    MATERIALS
    Flammability Rating of Housing MaterialUL94 V-0



    * UL Rated for 65°C largest wire or cable size
    ** Both AC & DC Voltage
    *** Contact factory for higher temperature rated connectors
    **** Based on 10 AWG
