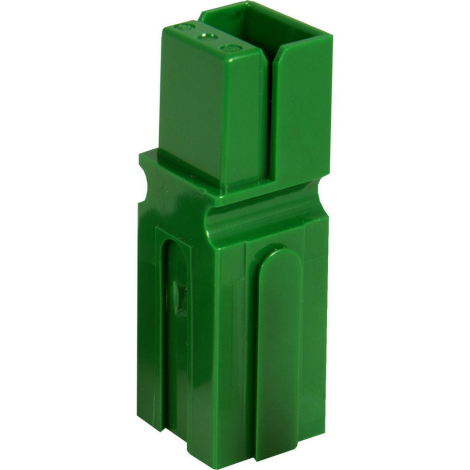

Powerpole® 120 Housings Green

SKU

1321G4-BK

PP120 Housings The second to largest Powerpole® housing can be used with wire contacts for up to 1/0 AWG [50mm²] or busbar contacts. Up to 240 Amps

PP120 series Powerpole® housings are designed to accommodate up to 1/0 (50 mm²) wires and handle high currents up to 240 amps. Reducing bushings allow PP120 to accept down to #8 (10 mm²) wires. Multiple colors of stackable housings combine with low resistance flat wiping technology to offer powerful connection capability.
Large Wire Range Accommodates up to 1/0 (50mm²) Wire Reducing bushings allow as small as #8 (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required

You're reviewing Powerpole® 120 Housings Green

Required fields are followed by *.

Nickname Summary Review

ELECTRICAL
UL Current Rating (Amperes)*	10*

UL Voltage Ratings (Volts)**	600*

AVG Contact Resistance*	2,200
(micro-ohms)

Insulation Withstanding	2,200
Test Voltage (Volts AC/DC)

MECHANICAL
Contact Barrel Wire Size (AWG)	#14 to #16
(mm²)	2.1 to 1.3

Maximum Wire Insulation Diameter (inches)	0.137
(mm)	3.48

Operating Temperature Range °C***	-20° to 105°
°F	-4° to 221°

Contact Retention Force (lbf)	25

No load (Contact/Disconnect Cycles)	To 250

Avg. Connection/Disconnect (lbf)	5

MATERIALS
Flammability Rating of Housing Material	UL94 V-0

* UL Rated for 65°C largest wire or cable size
** Both AC & DC Voltage
*** Contact factory for higher temperature rated connectors
