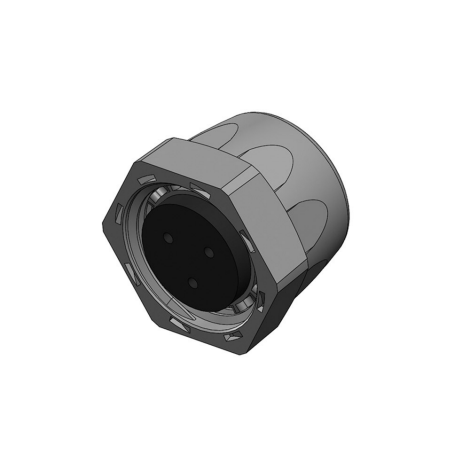

3 Position Mini PL SPEC Pak® Cable Gland (Pm31)
Product Description
- Wire Protection Designation: PM31; Number of Holes: 3;
- Wire Outer Dia.: 1.5 - 0.75 mm (0.06 - 0.03 in)
SKU
PS3T20-2X
- Wire Protection Designation: PM31; Number of Holes: 3;
- Wire Outer Dia.: 1.5 - 0.75 mm (0.06 - 0.03 in)
Customer Reviews
Specifications
| ELECTRICAL | |
| Current Rating (Amperes) | |
| • UL 1977 | 22 |
| • CSA (30˚C Rise) | 16 |
| Voltage Rating AC/DC | |
| • UL 1977 | 600 |
| Dielectric Withstanding Voltage | |
| • Volts AC | 2,200 |
| Contact Resistance (average) | 3 Milliohms |
| MATERIALS | |
| Shell | PC |
| Latch | PC |
| Flammability | UL 94 V-0 |
| Weatherability | UL 764C / 12mm, F1 |
| Contacts | |
| • Socket Body | Copper Alloy, |
| 200 µ inch Sn over Ni | |
| • Socket Contact | Copper Alloy, |
| 30 µ inch Au over Ni | |
| Pin | Copper Alloy, |
| 30 µ inch Au over Ni | |
| MECHANICAL | |
| Enviornmental Seal | |
| • IEC | IP 68 |
| • UL | 50E |
| Wire | |
| • Size | 24 to 12 AWG |
| 0.5 to 2.5 mm² | |
| Sealing Options | Sealing Gland |
| Operating Temperature | -20˚ to 105˚C |
| -4˚ to 221˚F | |
| Mating Cycles (no load) | 500 |
| Contact Retention Force | 10 lbf |
| 44 N | |
| Mating Force (nominal) | 5 lbs |
| 22 N | |
| Touch Safe UL 1977 Sec. 10.2 | Pass |
| Latch Strength (nominal) | 24 lbs |
| 107 N |
NOTE: Sn = tin Ni = nickel Au = gold
