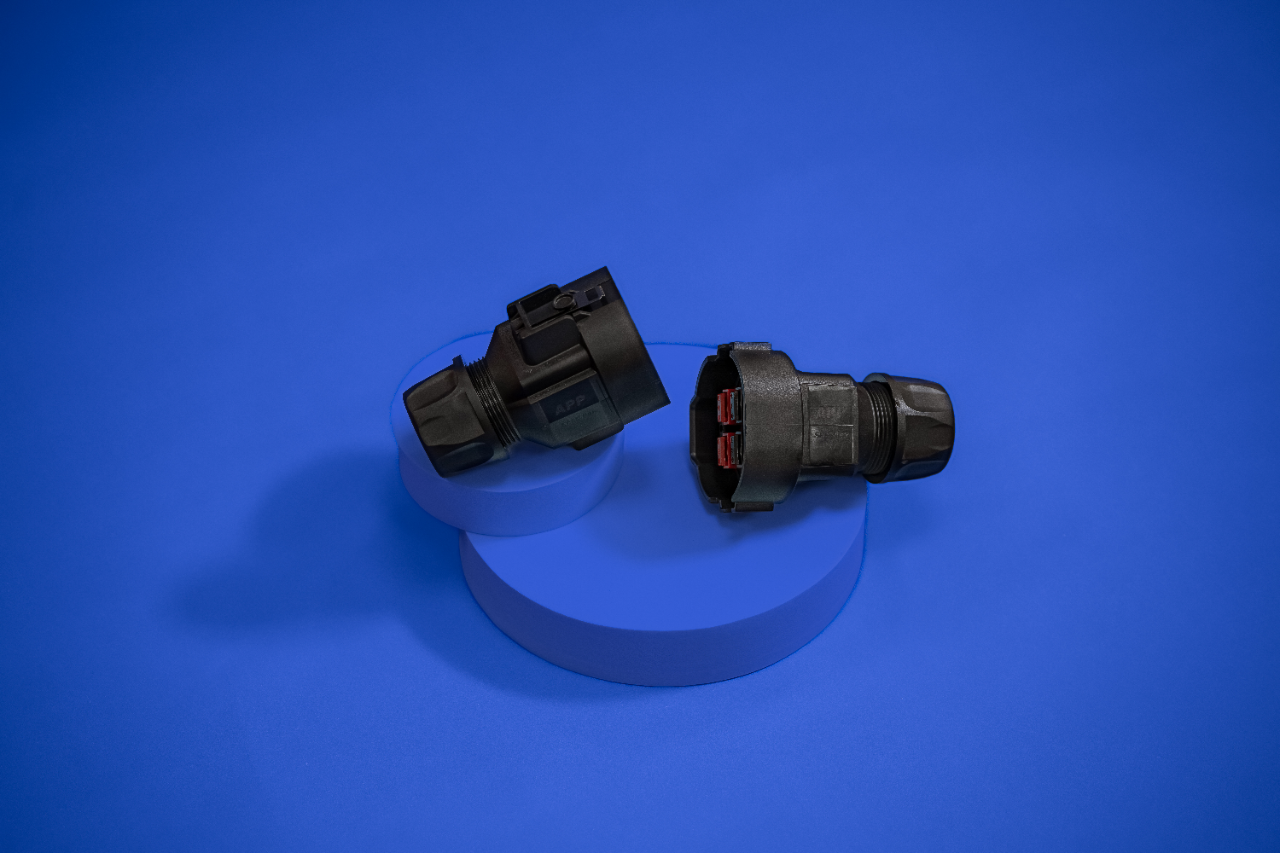

The SPEC Pak Connector Series are rugged and environmentally sealed (IP68) certified connectors made from PC, PC/PBT material that is UL94 V-0 flame resistant. Available in wire to wire or wire to panel configurations. Choose between a pin and socket or a flat-wiping contact technology design for applications demanding a waterproof high-power interconnect solution with power, ground and signaling capabilities. Intended applications include off-road vehicles, factory automation, lighting, marine, oil and petrochemical exploration, agricultural equipment and many more.
Pin and Socket Technology

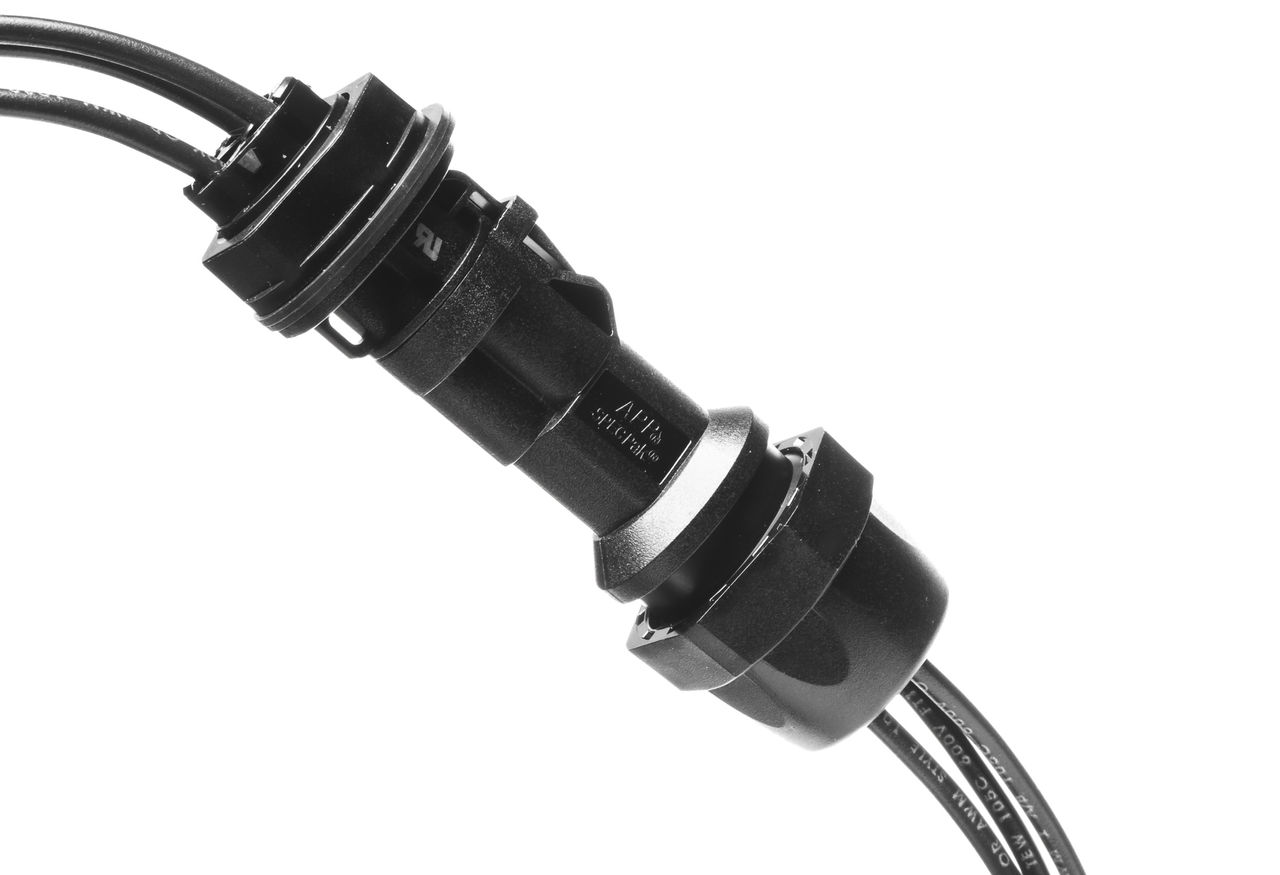

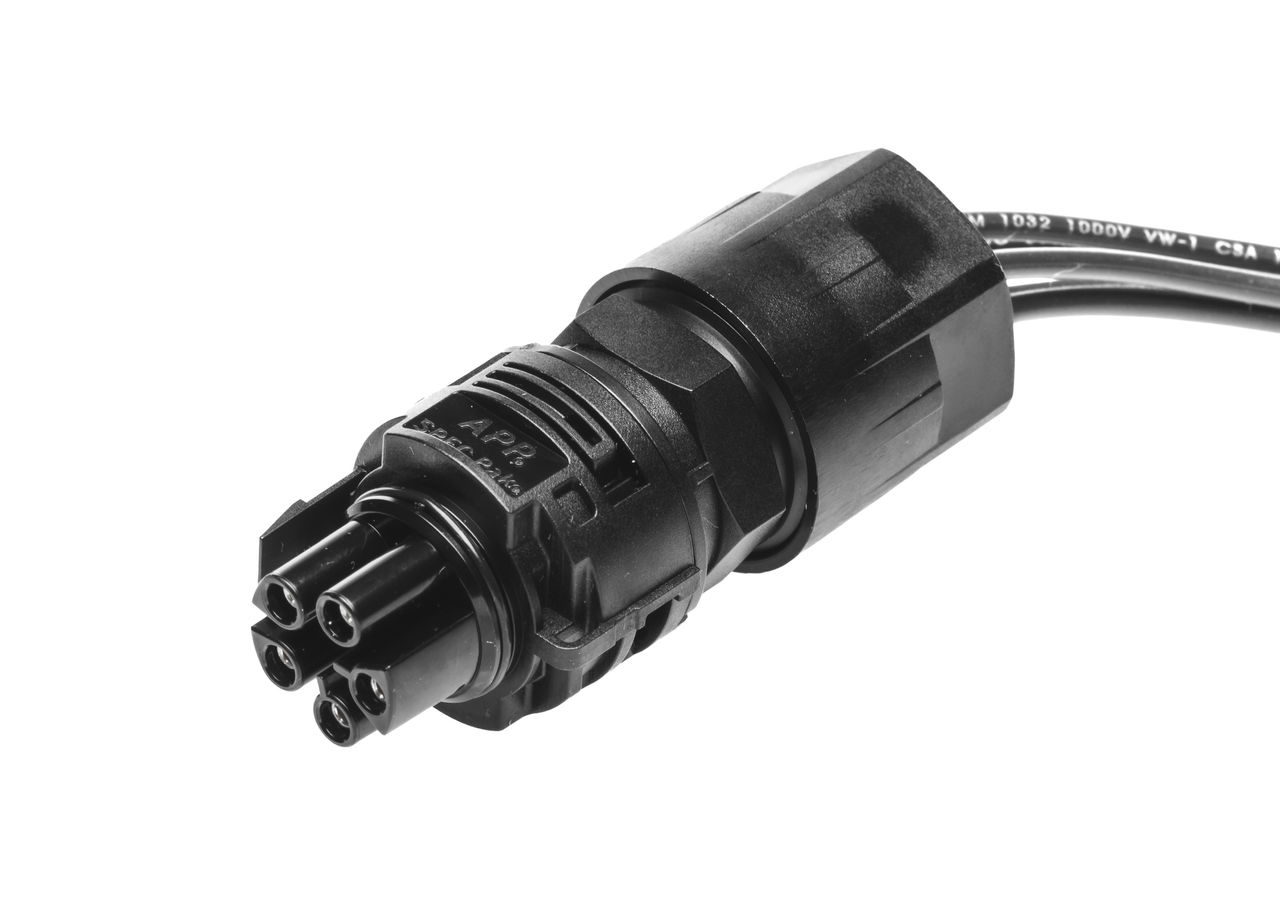

The SPEC Pak Mini connectors, available in 3 or 5 positions, are made of PC material offering operating temperatures of -20 to 105°C (-4 to 221°F) and utilize the proven PowerMod® pin and socket contact technology. These compact connectors can deliver capabilities of up to 22 amps at 600 volts while handling wire sizes from 24 to 12 AWG (.25 to 2.5 mm²). The 30µ gold plated pins are available in 3 lengths, enabling sequenced contact mating options.
The SPEC Pak 5 Position Mid Power connector is made from PC/PBT blended materials which allow operating temperatures of -40 to 105°C (-40 to 221°F) and offers a compact pin and socket design suitable for 3 phase AC power distribution, motor, controller or industrial equipment applications. Mid Power connector is compatible with up to 8 AWG (8.4mm²) wire with capabilities of up to 60 amps. Keying features within the housing design allow for multiple connectors to be used side by side while preventing circuits with incompatible voltage from being connected. The sealing gland accommodates both individual and jacketed cables offering protection from dust and water ingress certified to IP68. The shell housings feature robust metal latches designed to keep connectors securely mated.

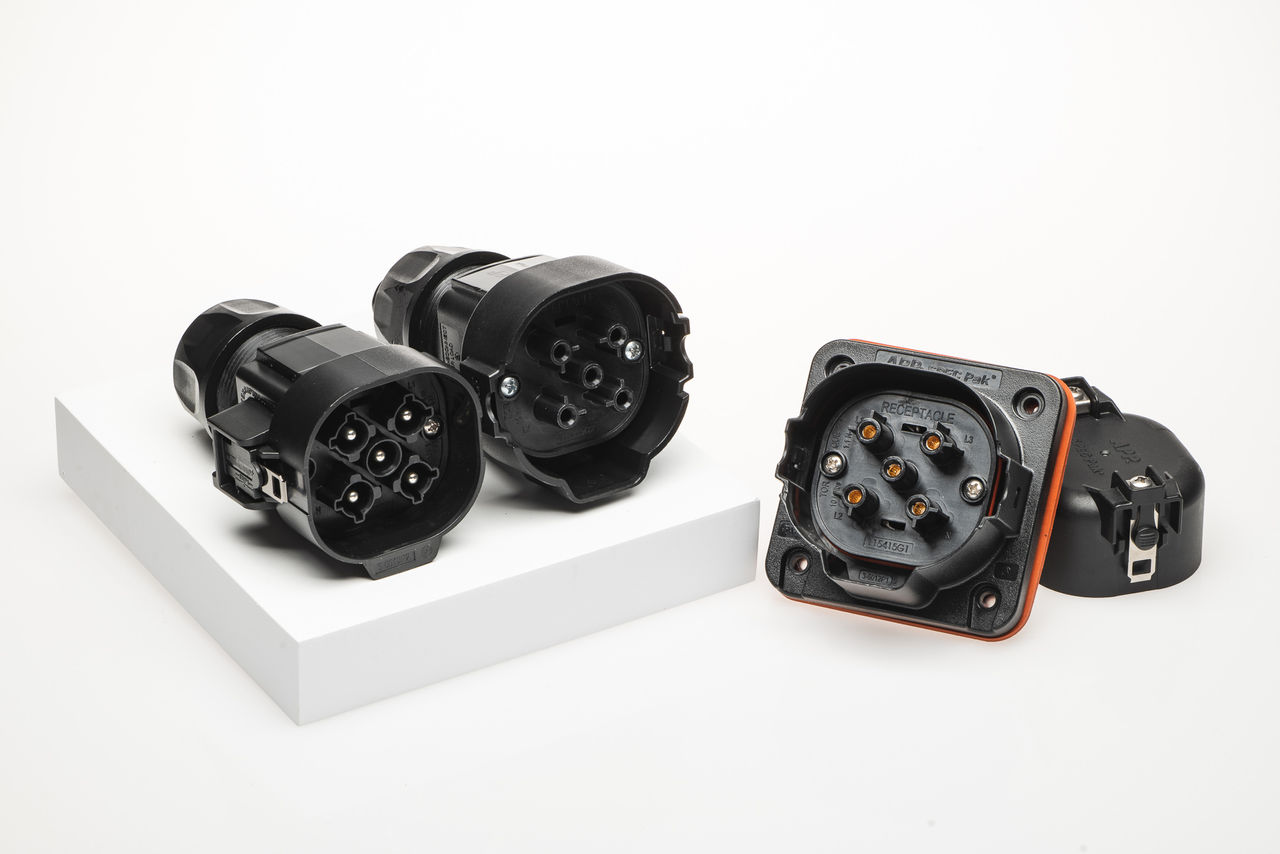

The SPEC Pak 5 Position Mid Power – Solar connector is made from PC/PBT blended materials which allow operating temperatures of -40 to 105°C (-40 to 221°F) and pin and socket design certified to UL6703. 5 Position Mid Power – Solar connector integrates well with an inverter, junction box or metered connection within the solar industry. Compatible up to 8 AWG (8.4mm²) wire with capabilities of up to 60 amps. The design offers a keying feature that allows multiple connectors to be used side by side while preventing circuits with incompatible voltage from being connected. The sealing gland accommodates both individual and jacketed cables that offer protection from dust and water ingress certified to IP68. The shell housings feature robust metal latches designed to keep connectors securely mated and requires a tool to unlock.

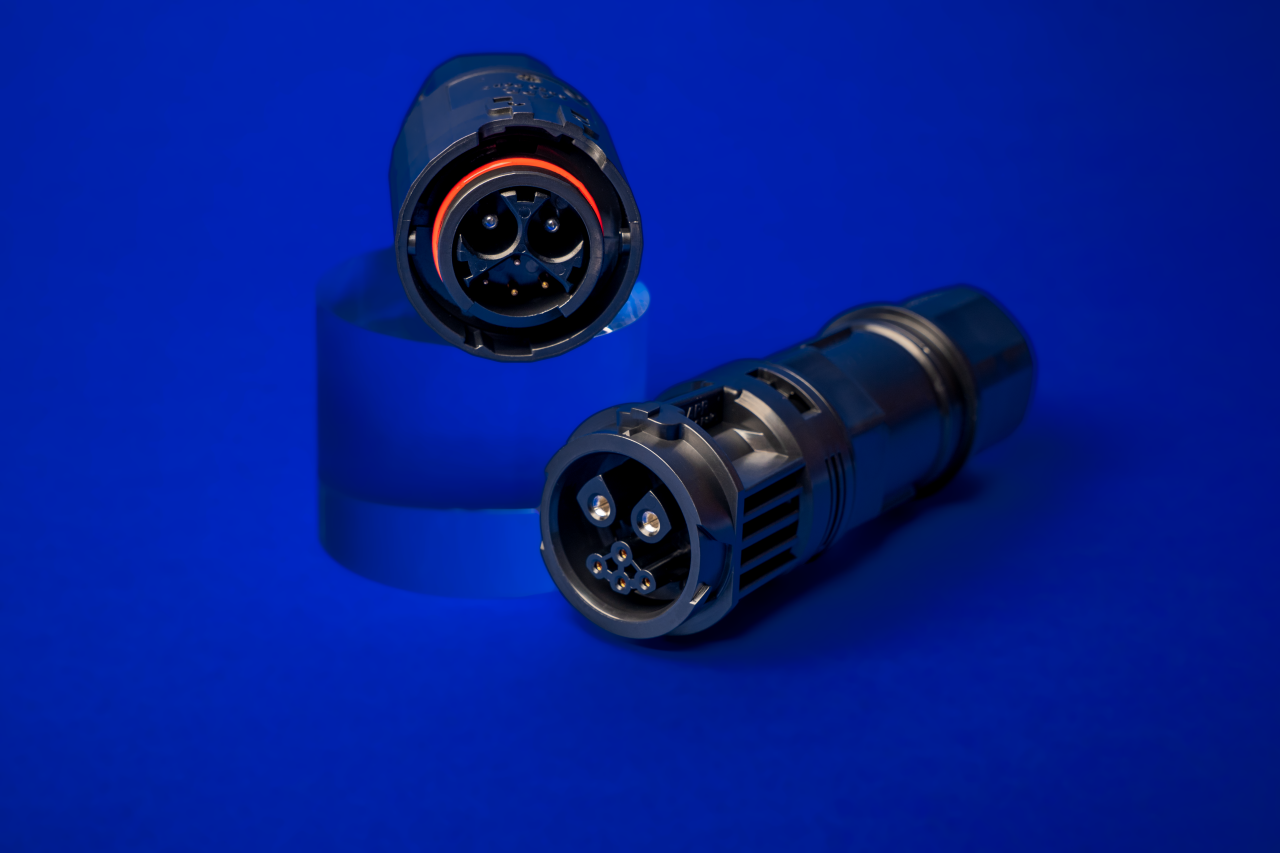

The 6 Pole Mini SPEC Pak waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
