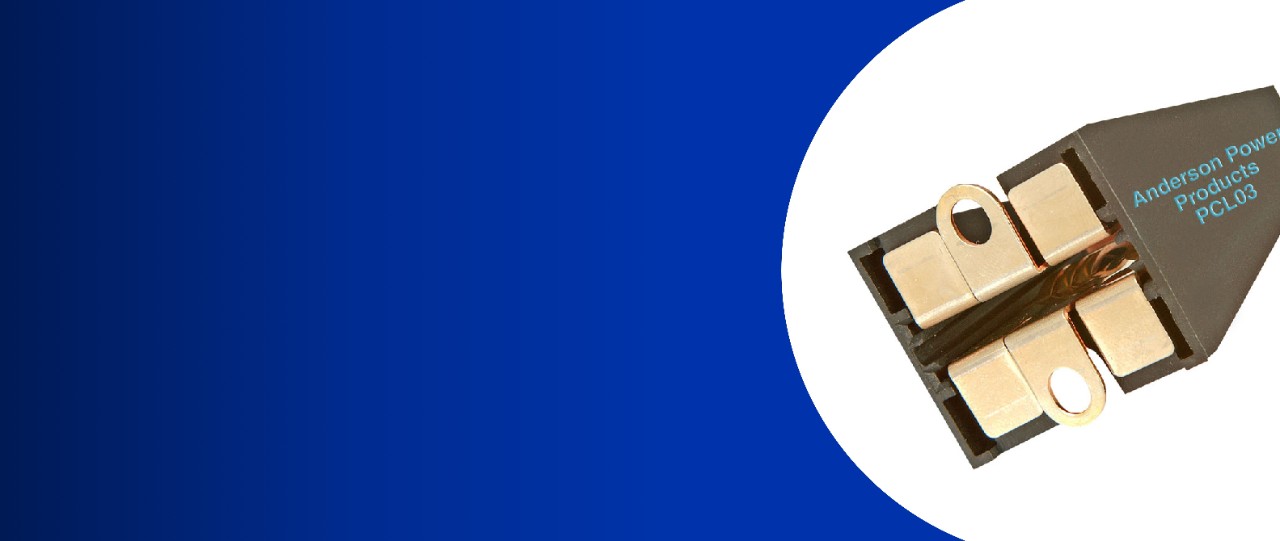

Power Clip® Connector Series




  • High 300A current rating - Small size provides dense power packaging
  • Mates with .125 inches or 3mm flat bus bar blade - Simplifies construction and lowers cost
  • Blind mating design - Allows greater vertical chassis manufacturing tolerances
  • Hot pluggable contact - Supports hot swapping on 48-volt DC bus
  • UL, TUV and CUR recognized - Product safety and electrical performance has been verified to the highest standards

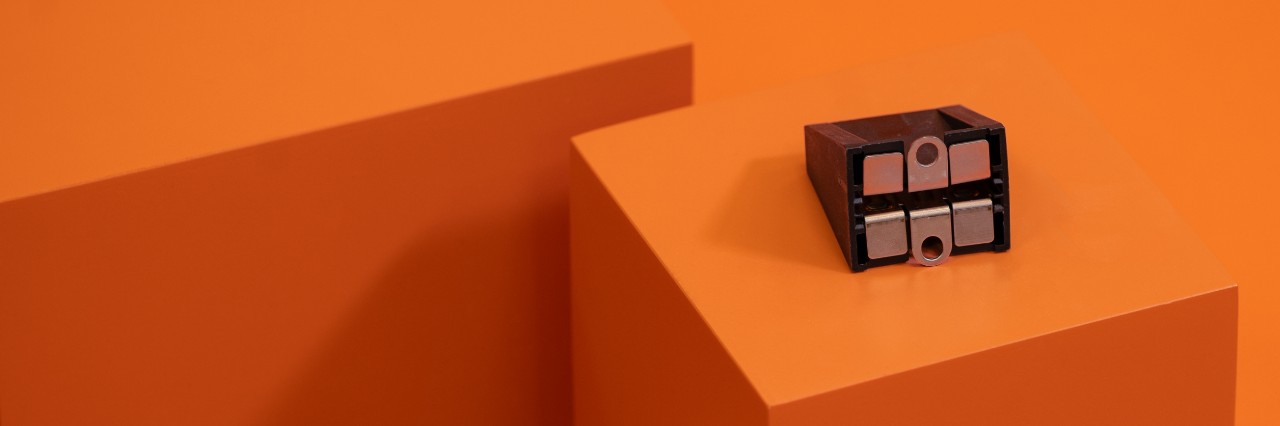

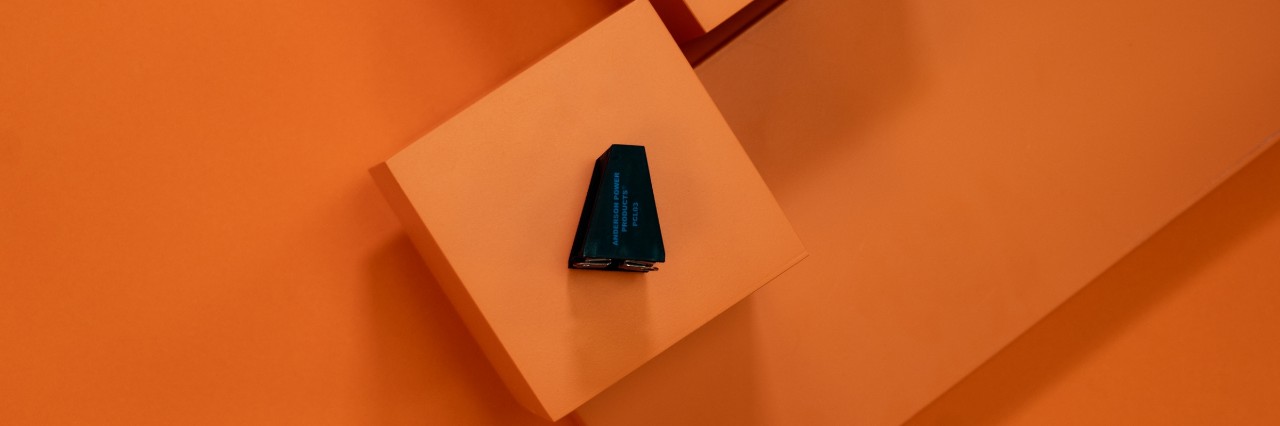

The Anderson Power™ Power Clip® is designed as a low-cost interconnection between two perpendicular power bus bars. The product's high performance contact offers low voltage drop and superior amperage carrying capability. There is no mating connector to the Power Clip as it accepts a solid .125 inches or 3mm thick nickel or gold plated rectangular bus bar tab.



The product is often used in "N+1" rectifier, power supply and switching power supply applications. The design enables the connector to be blind mated in the deepest racks.



The Power Clip is recognized to UL1977 and CSA standard C22.2 and is rated for up to 300 amps continuous service. The product is also UL approved for a current interruption of 100A at 48V and 200A at 42V using a gold plated bus bar tab.
