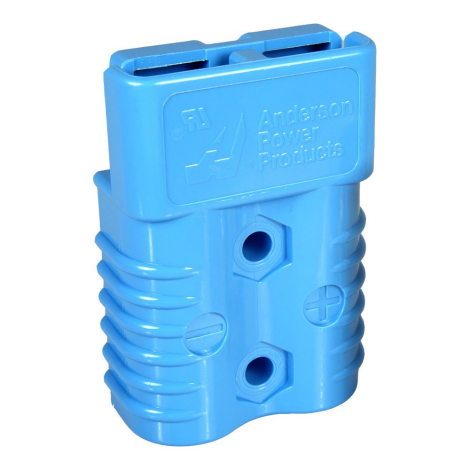

SB®175 Standard Housings Blue
SB®175 Standard Housings Blue
Download original image (HD) Download image (Low resolution) Open image in new tab

SB®175 Standard Housings Blue

Quantity

Product Description

  • The second to largest SB® housings work with wire contacts up to 1/0 AWG [50 mm²] as well as busbar contacts.
  • Genderless design mates with itself. Mechanical keys are color coded.
  • NOTE: SB®175 black housing is keyless and can be mated with all other colors.
  • Silver Plated Wire Contacts up to 1/0 (50 mm²)
  • Allows UL rated currents up to 280 amps
  • Chemical Resistant Housing Option
  • Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
  • UL Rated for Hot Plugging up to 100 Amps
  • Great for battery or other applications where the ability to interrupt circuits is required
  • Wire, PCB, and Busbar Contacts
SKU
941
SB®175 Standard Housings Blue- Up to 280 Amps
100
Add Your Review Be the first to review this product
  • The second to largest SB® housings work with wire contacts up to 1/0 AWG [50 mm²] as well as busbar contacts.
  • Genderless design mates with itself. Mechanical keys are color coded.
  • NOTE: SB®175 black housing is keyless and can be mated with all other colors.
  • Silver Plated Wire Contacts up to 1/0 (50 mm²)
  • Allows UL rated currents up to 280 amps
  • Chemical Resistant Housing Option
  • Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
  • UL Rated for Hot Plugging up to 100 Amps
  • Great for battery or other applications where the ability to interrupt circuits is required
  • Wire, PCB, and Busbar Contacts

Customer Reviews

    You're reviewing SB®175 Standard Housings Blue

    Required fields are followed by *.

    Your Rating
    Price
    Value
    Quality

    Specifications

    ELECTRICAL
    Current Rating AmperesUL 1977CSA
      • SB®5012050
      • SB®120240130
      • SB®175280175

    MECHANICAL
    Environmental Protection
      • SB®50, SB®120 and SB®175IP64

    Wire Size RangeAWGmm²
      • SB®5016 to 61.3 to 13.3
      • SB®12010 to 15.3 to 42.4
      • SB®17512 to 1/03.3 to 53.5

    Operating TemperatureFC
      • SB® Connector Housing-4° to 221°20° to 105°
      • SB® Connector Housing (CR)*-40° to 221°-40° to 105°
      • SB® Environmental Boot-40° to 275°-40° to 135°

    Mating CyclesConnector in Boot
      • SB®501,500
      • SB®1201,500
      • SB®1751,500

    MATERIALS - SB®50, SB®120 and SB®175
    • SB® Connector HousingPC
      • SB® Connector Housing (CR) *PC/PBT
      • SB® Environmental BootTPE

    Flammability Rating
      • UL94V0

    UV and Ozone ResistantYes


    * Chemical Resistant Series
