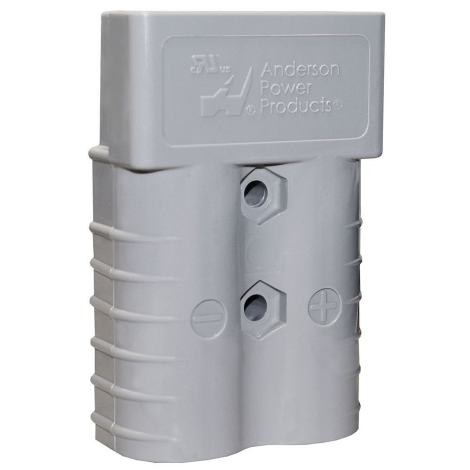

SB®350 Chemical Resistant Housing - Gray

Quantity

Product Description

  • The SB®350 is the largest connector in the series with power capabilities up to 450 amps with 4/0 AWG wire and 500 amps with a 350 mcm wire.
  • Wires ranging from #1/0 (53.5 mm²) to 350 mcm (150 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
  • Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
  • Up to 350 mcm (150 mm²) Wires allows UL rated currents up to 500 amps
  • Chemical Resistant Housing Option extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
  • Same Housings Used for Wire and Busbar Contacts enables color-coded mechanically keyed wire to busbar connections
SKU
P906
Same features as the Standard SB®350 but molded in a chemical resistant PBT/ PC blend. Suitable for use to -40°C
100
Add Your Review Be the first to review this product
  • The SB®350 is the largest connector in the series with power capabilities up to 450 amps with 4/0 AWG wire and 500 amps with a 350 mcm wire.
  • Wires ranging from #1/0 (53.5 mm²) to 350 mcm (150 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
  • Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
  • Up to 350 mcm (150 mm²) Wires allows UL rated currents up to 500 amps
  • Chemical Resistant Housing Option extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
  • Same Housings Used for Wire and Busbar Contacts enables color-coded mechanically keyed wire to busbar connections

Customer Reviews

    You're reviewing SB®350 Chemical Resistant Housing - Gray

    Required fields are followed by *.

    Your Rating
    Price
    Value
    Quality

    Specifications

    ELECTRICAL
    Current Rating AmperesUL 1977CSA
      • SB®5012050
      • SB®120240130
      • SB®175280175

    MECHANICAL
    Environmental Protection
      • SB®50, SB®120 and SB®175IP64

    Wire Size RangeAWGmm²
      • SB®5016 to 61.3 to 13.3
      • SB®12010 to 15.3 to 42.4
      • SB®17512 to 1/03.3 to 53.5

    Operating TemperatureFC
      • SB® Connector Housing-4° to 221°20° to 105°
      • SB® Connector Housing (CR)*-40° to 221°-40° to 105°
      • SB® Environmental Boot-40° to 275°-40° to 135°

    Mating CyclesConnector in Boot
      • SB®501,500
      • SB®1201,500
      • SB®1751,500

    MATERIALS - SB®50, SB®120 and SB®175
    • SB® Connector HousingPC
      • SB® Connector Housing (CR) *PC/PBT
      • SB® Environmental BootTPE

    Flammability Rating
      • UL94V0

    UV and Ozone ResistantYes


    * Chemical Resistant Series
