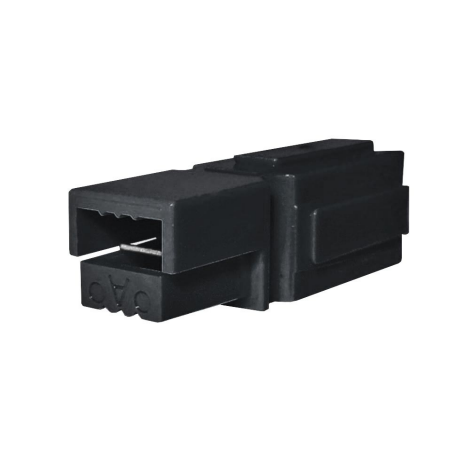

Powerpole® 15-45 Finger Proof Housings Black

数量

Product Description

  • PP15-45 series are the smallest Powerpole® housings. They can be used for wire-to-wire or wire-to-board applications. Wire sizesfrom #20 AWG (0.75 mm²) to #10 (6 mm²) offer power capabilitiesup to 55 amps per pole. Finger proof housings and the ability to incorporate first-mate last-break ground connectors enhance the capabilities of this Powerpole® series.High Power Density
  • Up to 55 amps in a compact footprintWire-to Wire & Wire-to-Board Configurations
  • Wire & PCB contacts can be used in the same housingsFinger Proof Housings Available
  • Protects against accidental contact with live circuits
SKU
1327G6FP-BK
Improved on the original APP design by adding ribs to mating interface to protect against accidental contact with live circuits. Meets the requirementsof UL1977 section 10.2 and is rated IP20. Will not mate with standard housings. Black
100
添加您的评论 率先查看此产品
  • PP15-45 series are the smallest Powerpole® housings. They can be used for wire-to-wire or wire-to-board applications. Wire sizesfrom #20 AWG (0.75 mm²) to #10 (6 mm²) offer power capabilitiesup to 55 amps per pole. Finger proof housings and the ability to incorporate first-mate last-break ground connectors enhance the capabilities of this Powerpole® series.High Power Density
  • Up to 55 amps in a compact footprintWire-to Wire & Wire-to-Board Configurations
  • Wire & PCB contacts can be used in the same housingsFinger Proof Housings Available
  • Protects against accidental contact with live circuits

客户评价

    您正在审查 Powerpole® 15-45 Finger Proof Housings Black

    必填字段后有 *.

    您的评分
    价格
    价值
    质量

    Specifications

    Powerpole PP10 Pin & Socket Specifications

    ELECTRICAL
    UL Current Rating (Amperes)*10*

    UL Voltage Ratings (Volts)**600*

    AVG Contact Resistance*2,200
    (micro-ohms)

    Insulation Withstanding2,200
    Test Voltage (Volts AC/DC)

    MECHANICAL
    Contact Barrel Wire Size (AWG)#14 to #16
                                       (mm²)2.1 to 1.3

    Maximum Wire Insulation Diameter (inches)0.137
                                                     (mm)3.48

    Operating Temperature Range °C***-20° to 105°
                                               °F-4° to 221°

    Contact Retention Force (lbf)25

    No load (Contact/Disconnect Cycles)To 250

    Avg. Connection/Disconnect (lbf)5

    MATERIALS
    Flammability Rating of Housing MaterialUL94 V-0


    * UL Rated for 65°C largest wire or cable size
    ** Both AC & DC Voltage
    *** Contact factory for higher temperature rated connectors

    Powerpole PP30 Pin & Socket Specifications

    ELECTRICAL
    UL Current Rating (Amperes)*30****

    UL Voltage Ratings (Volts)**600*

    AVG Contact Resistance*600
    (micro-ohms)

    Insulation Withstanding2,200
    Test Voltage (Volts AC/DC)
