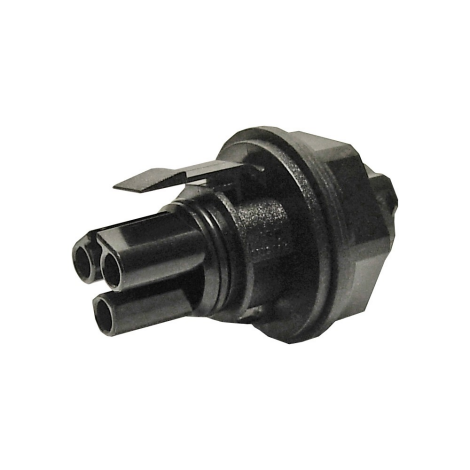

SK7-019M03 | 3 Position Mini Pl SPEC Pak® Jam Nut Shell
SK7-019M03 | 3 Position Mini Pl SPEC Pak® Jam Nut Shell
Download original image (HD) Download image (Low resolution) Open image in new tab

SK7-019M03 | 3 Position Mini Pl SPEC Pak® Jam Nut Shell

Quantity

Product Description

  • 3 Position Mini PL SPEC Pak® is a rugged and environmentally sealed (IP68) connector with a manually operated release latch.
  • The 3 Position Mini PL leverages PowerMod® pin and socket contact technology, delivering capabilities up to 22 amps at 600 volts while handling wires from 24 to 12 AWG (0.5 to 2.5 mm²).
  • The 30µ gold plated pins are available in 3 lengths, enabling sequenced contact mating options.
  • These contacts sit inside a UV and flame resistant shells that are touch safe on both sides.
  • Manual Release Latch prevents accidental un-mating
  • Pin & Socket Contact Technology: Gold plated for greater conductivity
  • 3 Pin Lengths offers sequencing capabilities
  • Touch Safe per UL 1977 Sec. 10.2: Touch safe on both pin & socket sides
  • Rugged & Environmentally Sealed Shells
  • F1 weatherability rating per UL 746C
  • V0 flammability rating per UL 94
  • IP68, exceeds industry standards
SKU
SK7-019M03
3 Position Mini Pl SPEC Pak® Jam Nut Shell Kit
100
Add Your Review Be the first to review this product
  • 3 Position Mini PL SPEC Pak® is a rugged and environmentally sealed (IP68) connector with a manually operated release latch.
  • The 3 Position Mini PL leverages PowerMod® pin and socket contact technology, delivering capabilities up to 22 amps at 600 volts while handling wires from 24 to 12 AWG (0.5 to 2.5 mm²).
  • The 30µ gold plated pins are available in 3 lengths, enabling sequenced contact mating options.
  • These contacts sit inside a UV and flame resistant shells that are touch safe on both sides.
  • Manual Release Latch prevents accidental un-mating
  • Pin & Socket Contact Technology: Gold plated for greater conductivity
  • 3 Pin Lengths offers sequencing capabilities
  • Touch Safe per UL 1977 Sec. 10.2: Touch safe on both pin & socket sides
  • Rugged & Environmentally Sealed Shells
  • F1 weatherability rating per UL 746C
  • V0 flammability rating per UL 94
  • IP68, exceeds industry standards

Customer Reviews

    You're reviewing SK7-019M03 | 3 Position Mini Pl SPEC Pak® Jam Nut Shell

    Required fields are followed by *.

    Your Rating
    Price
    Value
    Quality

    Specifications

    ELECTRICAL
    Current Rating (Amperes)
       • UL 197722
       • CSA (30˚C Rise)16

    Voltage Rating AC/DC
       • UL 1977 600

    Dielectric Withstanding Voltage
       • Volts AC2,200

    Contact Resistance (average)3 Milliohms

    MATERIALS
    ShellPC

    LatchPC

    FlammabilityUL 94 V-0

    WeatherabilityUL 764C / 12mm, F1

    Contacts
       • Socket BodyCopper Alloy,
     200 µ inch Sn over Ni

       • Socket ContactCopper Alloy,
     30 µ inch Au over Ni

    PinCopper Alloy,
     30 µ inch Au over Ni

    MECHANICAL
    Enviornmental Seal
       • IECIP 68
       • UL50E

    Wire
       • Size24 to 12 AWG
     0.5 to 2.5 mm²

    Sealing OptionsSealing Gland

    Operating Temperature-20˚ to 105˚C
     -4˚ to 221˚F

    Mating Cycles (no load)500

    Contact Retention Force10 lbf
     44 N

    Mating Force (nominal)5 lbs
     22 N

    Touch Safe UL 1977 Sec. 10.2Pass

    Latch Strength (nominal)24 lbs
     107 N


    NOTE: Sn = tin       Ni = nickel       Au = gold



    Please Login to download items.
