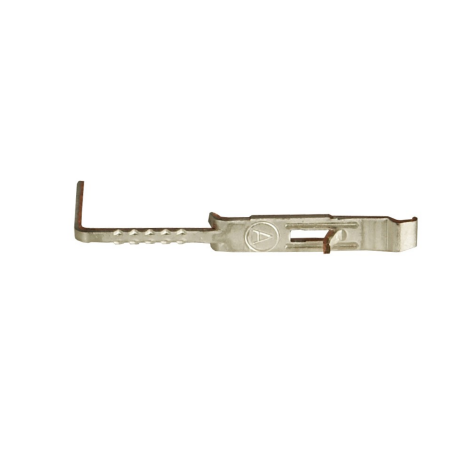

Powerpole® 15-45 45A Premate Ground PCB Contacts, Bottom Row, Low Detent
Powerpole® 15-45 45A Premate Ground PCB Contacts, Bottom Row, Low Detent
Download original image (HD) Download image (Low resolution) Open image in new tab

Powerpole® 15-45 45A Premate Ground PCB Contacts, Bottom Row, Low Detent

Quantity

Product Description

Right angle contacts are suitable for power or ground. Use to mate with 45A ground wire contacts. Tin plated contacts are rated up to 1,500 mating cycles. C an be used with other 45A PCB co nnectors in the bottom row.
SKU
1836G1
Loading Distributors for 1836G1
45A Premate Ground PCB Contacts PCB, Bottom Row Low
100
Add Your Review Be the first to review this product

Right angle contacts are suitable for power or ground. Use to mate with 45A ground wire contacts. Tin plated contacts are rated up to 1,500 mating cycles. C an be used with other 45A PCB co nnectors in the bottom row.

    Customer Reviews

      You're reviewing Powerpole® 15-45 45A Premate Ground PCB Contacts, Bottom Row, Low Detent

      Required fields are followed by *.

      Your Rating
      Price
      Value
      Quality

      Specifications

      Powerpole PP10 Pin & Socket Specifications

      ELECTRICAL
      UL Current Rating (Amperes)*10*

      UL Voltage Ratings (Volts)**600*

      AVG Contact Resistance*2,200
      (micro-ohms)

      Insulation Withstanding2,200
      Test Voltage (Volts AC/DC)

      MECHANICAL
      Contact Barrel Wire Size (AWG)#14 to #16
                                         (mm²)2.1 to 1.3

      Maximum Wire Insulation Diameter (inches)0.137
                                                       (mm)3.48

      Operating Temperature Range °C***-20° to 105°
                                                 °F-4° to 221°

      Contact Retention Force (lbf)25

      No load (Contact/Disconnect Cycles)To 250

      Avg. Connection/Disconnect (lbf)5

      MATERIALS
      Flammability Rating of Housing MaterialUL94 V-0


      * UL Rated for 65°C largest wire or cable size
      ** Both AC & DC Voltage
      *** Contact factory for higher temperature rated connectors

      Powerpole PP30 Pin & Socket Specifications

      ELECTRICAL
      UL Current Rating (Amperes)*30****

      UL Voltage Ratings (Volts)**600*

      AVG Contact Resistance*600
      (micro-ohms)

      Insulation Withstanding2,200
      Test Voltage (Volts AC/DC)

      MECHANICAL
      Contact Barrel Wire Size (AWG)#10
                                          (mm²)5.3

      Maximum Wire Insulation Diameter (inches)0.175
                                                       (mm)4.45

      Operating Temperature Range °C***-20° to 105°
                                                 °F-4° to 221°

      Contact Retention Force (lbf)25

      No load (Contact/Disconnect Cycles)To 250

      Avg. Connection/Disconnect (lbf)3

      MATERIALS
      Flammability Rating of Housing MaterialUL94 V-0



      * UL Rated for 65°C largest wire or cable size
      ** Both AC & DC Voltage
      *** Contact factory for higher temperature rated connectors
      **** Based on 10 AWG
