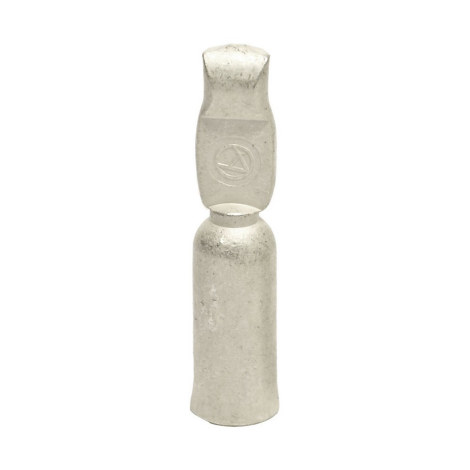

SB®175/PP180 Silver Plated Wire Contacts 42.4mm¦ Mating Force High

Quantity

Product Description

  • Wires sizes from #10 (5.3 mm¦) to 1/0 (50 mm¦) fi t in the second to largest connector in the SB® series. The3 pole SB®175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventoryand assembly complexity.
  • Silver Plated Wire Contacts up to 1/0 (50 mm¦) Allows UL rated currents up to 280 amps
  • Chemical Resistant Housing Option Extends temperature range down to -40¦C, while offering enhanced UV and chemical resistance
  • UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SKU
1347-BK
Silver plated contacts offer superior electrical performance and durability up to 10,000 mating cycles. See reducing bushings in accessory section for smaller wires. 42.4mm¦ Mating Force High
100
Add Your Review Be the first to review this product
  • Wires sizes from #10 (5.3 mm¦) to 1/0 (50 mm¦) fi t in the second to largest connector in the SB® series. The3 pole SB®175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventoryand assembly complexity.
  • Silver Plated Wire Contacts up to 1/0 (50 mm¦) Allows UL rated currents up to 280 amps
  • Chemical Resistant Housing Option Extends temperature range down to -40¦C, while offering enhanced UV and chemical resistance
  • UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required

Customer Reviews

    You're reviewing SB®175/PP180 Silver Plated Wire Contacts 42.4mm¦ Mating Force High

    Required fields are followed by *.

    Your Rating
    Price
    Value
    Quality

    Specifications

    Powerpole PP10 Pin & Socket Specifications

    ELECTRICAL
    UL Current Rating (Amperes)*10*

    UL Voltage Ratings (Volts)**600*

    AVG Contact Resistance*2,200
    (micro-ohms)

    Insulation Withstanding2,200
    Test Voltage (Volts AC/DC)

    MECHANICAL
    Contact Barrel Wire Size (AWG)#14 to #16
                                       (mm²)2.1 to 1.3

    Maximum Wire Insulation Diameter (inches)0.137
                                                     (mm)3.48

    Operating Temperature Range °C***-20° to 105°
                                               °F-4° to 221°

    Contact Retention Force (lbf)25

    No load (Contact/Disconnect Cycles)To 250

    Avg. Connection/Disconnect (lbf)5

    MATERIALS
    Flammability Rating of Housing MaterialUL94 V-0


    * UL Rated for 65°C largest wire or cable size
    ** Both AC & DC Voltage
    *** Contact factory for higher temperature rated connectors

    Powerpole PP30 Pin & Socket Specifications

    ELECTRICAL
    UL Current Rating (Amperes)*30****

    UL Voltage Ratings (Volts)**600*

    AVG Contact Resistance*600
    (micro-ohms)

    Insulation Withstanding2,200
    Test Voltage (Volts AC/DC)
